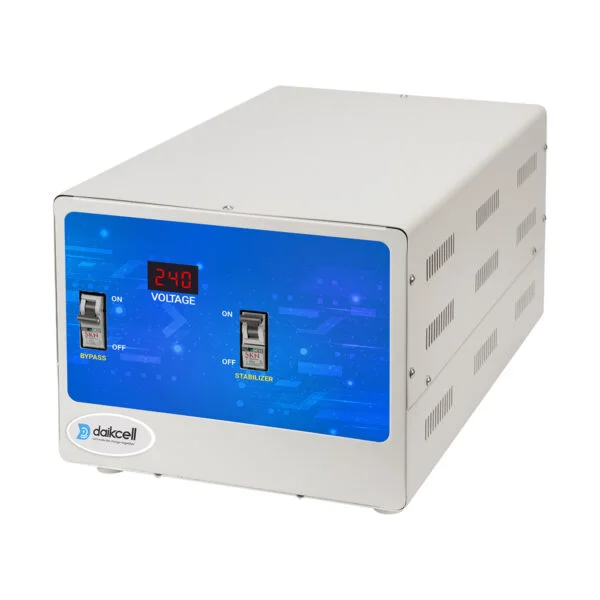

daikcell 15 KVA COPPER 130V-300V Mainline Heavy Duty Voltage Stabilizer For Home 12000W for Single Phase

Original price was: ₹39,999.00.Current price is: ₹23,999.00.
30 people are viewing this right now
4 in stock
Estimated Delivery:
26 - 28 Nov, 2024
Trust Badge
Guaranteed safe & secure checkout

Product details

daikcell 15 KVA COPPER 130V-300V Mainline Heavy Duty Voltage Stabilizer for Home 12000W for Single Phase With Changeover MCB/Powers all Home Appliances, 5 Year Replacement Warranty*
  • Full protection design for Over Voltage, Under Voltage, Short Circuit, and Overload to protect your equipment
  • Digital LCD display, continuously displays input & output voltage with LED indicators
  • Low & High Cut Off:- Automatically cuts the grid supply during a power surge and fluctuations
  • Integrated with Zero cross switching technology with High Efficient Toroidal Transformer
  • Complete Protection for all your appliances with inbuilt High Voltage Cut, Low Voltage Cut, Short Circuit, and Overload Protection, enhancing their performance and life cycle, automatically cuts the power supply during huge surges and fluctuations.
  • Multifunctional Digital Display showing Output Voltage (OP), Input Voltage (IP), High Voltage (Hi), Low Voltage (Lo), 5 Second Initial Time Delay Countdown, you can monitor the voltage performance in real-time mainline stabilizer home.
  • Compact Design, a high tensile metal cabinet for the long life cycle of the product, easy to install with just 5 wire connections clearly marked on the stabilizer, 2 wires for input, 2 wires for output, and 1 wire for earthing, no more complications
  • Integrated with Zero cross switching technology with Highly Efficient Toroidal Transformer, 2 MCB on the front, 1 for stabilizer on/off (Mains), 2nd for Changeover/Bypass to use the grid power supply in case of any failure or emergency hence saving you the hassle of a power outage
  • 5 Year Replacement Warranty, we will replace your stabilizer free of cost in case of any problems faced with the stabilizer, you don’t have to go anywhere, the old stabilizer will be picked up from the comfort of your home and a new one will be delivered.
Product details
  • Package Dimensions: 60 x 42 x 35 CM
  • Item Weight: 35.4 kg
  • Manufacturer: daikcell
  • Country of Origin: India
  • 5 Year replacement warranty*

Product Description

Standard Technical Specifications

Output Voltage Range 200V-240V +/- 5% (190V Lowest & 252V Highest)
High Voltage Cut Off 280V Cut Off (Recovery @ 300V)
Initial Time Delay 5 to 10 seconds
Frequency 50 Hz. +/- 2 Hz.
By-Pass / Changeover via MCB (To be turned on 1 MCB at a time)
Operation Fully Automatic
Technology Relay Type
Display Type Digital
Display Parameters ‘Lo’ for Low voltage, ‘Hi’ for High Voltage
Voltage Display ‘IP’ for Input, ‘OP’ for Output
Idle Power Consumption Less than 10 watts*
Recommended MCB Use only ‘C’ Series MCB at your Distribution Box before connecting the stabilizer
Cooling Air Cooling
Other Safety Features Fuse Protection
Wire Size 2.5 square mm.
MCB Type C32
